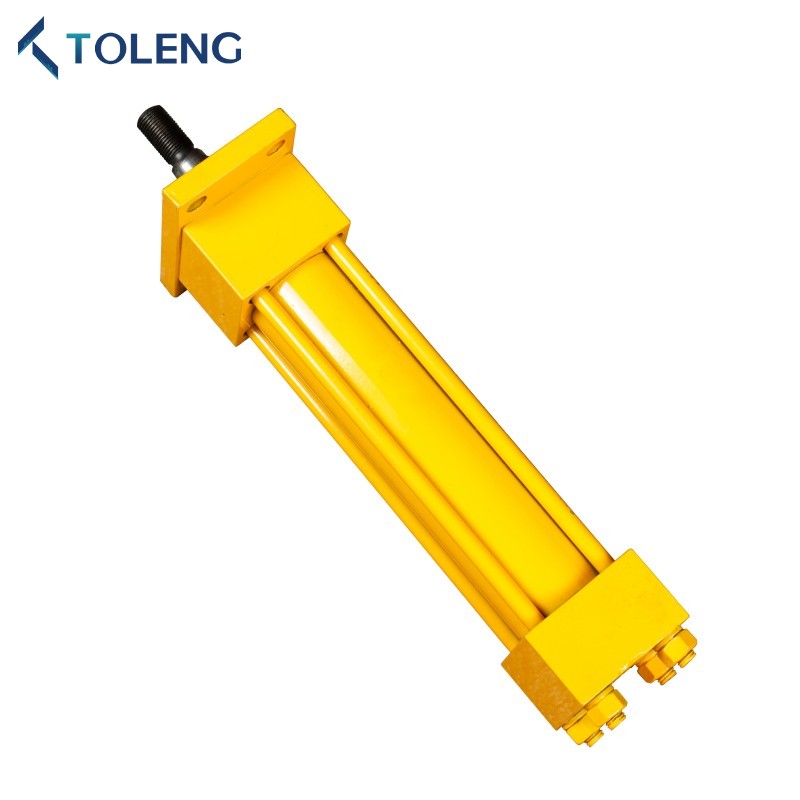

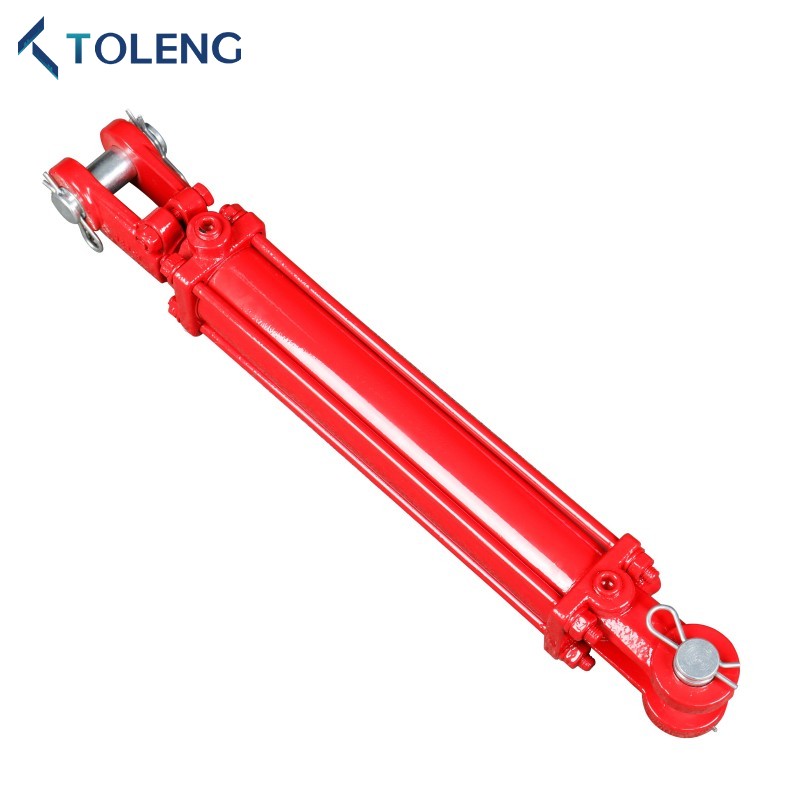

Standard TR-serie Tie-Rod hydraulisk cylinder
Toleng er en professionel hydraulisk cylinderproducent og leverandør i Kina. Vi er blevet specialiseret i hydraulisk cylinder til standard TR-serie-slips-stang hydraulisk cylinder i mere end 20 år. Vores produkter er blevet eksporteret til forbrugere over hele verden og har modtaget et godt omdømme. Vi ser frem til at etablere et langsigtet forretningspartnerskab med dig.
Send forespørgsel
Produkt beskrivelse
Toleng Standard TR-serie Tie-Rod hydraulisk cylinder er en vigtig komponent inden for landbrugsmaskinerfeltet, der er kendt for sin pålidelige og effektive ydelse. Det er omhyggeligt designet med præcision og holdbarhed, hvilket garanterer glat i forskellige landbrugsapplikationer. Vores standard TR-serie Tie-Rod hydraulisk cylinder leveres med en række specifikationer for at imødekomme specifikke krav.
Standard TR-serie Tie-Rod hydraulisk cylinderapplikation
Toleng Standard TR-serie Tie-Rod hydraulisk cylinder finder omfattende brug primært i landbrugsmaskinerindustrien. Det anvendes ofte i forskellige landbrugsmaskiner, såsom traktorfastgørelser, kombinerer høstmaskiner, seeder osv.
Standard TR-serie Tie-Rod hydraulisk cylinderspecifikation
1. Dobbeltvirkende applikationer
2.Tube: Højkvalitetsudviklet/skived koldt tegnet rør
3.Piston Rod: Høj styrke hærdet, hård krombelagt
4.Piston: Duktilt jern
5.Tie-Rods: Høj trækstål
6. Arbejdstryk: 2500/3000 psi
7. Paint: Sort, grøn, rød, gul osv. Brugerdefinerede farver er tilgængelige.
2.Tube: Højkvalitetsudviklet/skived koldt tegnet rør
3.Piston Rod: Høj styrke hærdet, hård krombelagt
4.Piston: Duktilt jern
5.Tie-Rods: Høj trækstål
6. Arbejdstryk: 2500/3000 psi
7. Paint: Sort, grøn, rød, gul osv. Brugerdefinerede farver er tilgængelige.
Standard TR-serie TIE-ROD Hydraulisk cylinder Tekniske parametre
| DEL ANTAL |
Insider DIAMETER |
OUTSIDER DIAMETER |
*EN | B | *C | D | *E | F | *G | H | I | J | Rod TRÅD |
HAVN |
| TTR3-20- | 2,00 " | 2,50 " | 10.25 " | 2,00 " | 1.01 " | 2,00 " | 3,75 " | 2.25 " | 1.12 " | 2.06 " | 2.12 " | 2.62 " | 1.125-12 UNF | SAE#8 |
| TTR3-25- | 2,50 " | 3.00 " | 10.25 " | 2,00 " | 1.01 " | 2,00 " | 3,75 " | 2.25 " | 1.12 " | 2.06 " | 2.12 " | 2.62 " | 1.125-12 UNF | SAE#8 |
| TTR3-30- | 3.00 " | 3,50 " | 10.25 " | 2.25 " | 1.01 " | 2.25 " | 3,75 " | 2.25 " | 1.12 " | 2.06 " | 2.12 " | 2.62 " | 1.250-12 UNF | SAE#8 |
| TTR3-35- | 3,50 " | 4.00 " | 10.25 " | 2,50 " | 1.01 " | 2,50 " | 3.62 " | 2,50 " | 1.12 " | 2.06 " | 2.12 " | 2,75 " | 1.250-12 UNF | SAE#8 |
| TTR3-40- | 4.00 " | 4,50 " | 10.25 " | 2,50 " | 1.01 " | 2,50 " | 3.56 " | 2.62 " | 1.12 " | 2.06 " | 2.12 " | 2,75 " | 1.250-12 UNF | SAE#8 |
| TTR3-50-50 | 5,00 " | 5,50 " | 12.25 " | 2.87 " | 1.26 " | 2,75 " | 4.18 " | 3,50 " | 1.12 " | 2.25 " | 2.12 " | 3.31 " | 1.500-12 UNF | SAE#10 |
| *For 8,00 "Asae Stroke:*A = 12,25" og for 16,00 "Asae Stroke:*A = 15,50" | ||||||||||||||
| *For 8,00 "Slag:*E = 5,75" (2,00 "til 3,00" Boring)*E = 5,62 "(3,50" Boring)*E = 5,56 "(4,00" Bore) | ||||||||||||||
| *For 16,00 "Asae -slagtilfælde:*E = 9,00" (2,00 "til 3,00" Boring)*E = 8,87 "(3,50" Boring)*E = 8,81 "(4,00" Boring) = 7,43 "(5.00" Boring) | ||||||||||||||
| *For 5,00 "Boring:*G (front clevis) = 1,18"*g (slutkap) = 1,31 " | ||||||||||||||
| *For16,00 "Asae Strokea:*C = 126" | ||||||||||||||
| Forseglingstemperaturområde: -30 ℃/+100 ℃ (-22 "F/+212" F) | ||||||||||||||
| Forsegl maksimal hastighed: 3 ft/sek | ||||||||||||||
| Maksimal tilbagetrækket arbejdstryk = 3000 psi | ||||||||||||||
| Dimensioner *a og *e er kun til referencer, da Clevis er justerbar | ||||||||||||||
| Bind-rodcylinder | |||||||
| Delnummer | Rod DIAMETER |
BORE& Slag |
Dimensioner | Portstørrelse | STIFT STØRRELSE |
VÆGT (Lbs) |
|
| Trukket tilbage | Udvidet | ||||||
| TTR30-2004 | 1-1/8 " | 2 "x4" | 14-1/4 " | 18-1/4 " | 3/8 "NPT & SAE#8 |
1 " | 16.8 |
| TTR30-2006 | 2 "x6" | 16-1/4 " | 22-1/4 " | 18.4 | |||
| TTR30-2008 | 2 "x8" | 18-1/4 " | 26-1/4 " | 20.0 | |||
| TTR30-2008-AASA | 2 "x8" | 20-1/4 " | 28-1/4 " | 20.5 | |||
| TTR30-2010 | 2"X10" | 20-1/4 " | 30-1/4 " | 21.5 | |||
| TTR30-2012 | 2 "x12" | 22-1/4 " | 34-1/4 " | 23.1 | |||
| TTR30-2014 | 2 "x14" | 24-1/4 " | 38-1/4 " | 24.7 | |||
| TTR30-2016 | 2 "x16" | 26-1/4 " | 42-1/4 " | 26.3 | |||
| TTR30-2016-ASAE | 2 "x16" | 31-1/4 " | 47-1/4 " | 26.9 | |||
| TTR30-2018 | 2 "x18" | 28-1/4 " | 46-1/4 " | 279 | |||
| TTR30-2020 | 2 "x20" | 30-1/4 " | 50-1/4 " | 29.5 | |||
| TTR30-2024 | 2 "x24" | 34-1/4 " | 58-1/4 " | 32.6 | |||
| TTR30-2030 | 2 "x30" | 40-1/4 " | 70-1/4 " | 37.4 | |||
| TTR30-2036 | 2 "x36" | 46-1/4 " | 82-1/4 " | 42.2 | |||
| TTR30-2040 | 2 "x40" | 50-1/4 " | 90-1/4 " | 45.3 | |||
| TTR30-2048 | 2 "x48" | 58-1/4 " | 106-1/4 " | 51.7 | |||
| TTR30-2504 | 1-1/4 " | 2,5 "x4" | 14-1/4 " | 18-1/4 " | 3/8 "NPT & SAE# |
1 ” | 18.6 |
| TTR30-2506 | 2.5 "x6" | 16-1/4 " | 22-1/4 " | 20.9 | |||
| TTR30-2508 | 2,5 "x8" | 18-1/4 " | 26-1/4 " | 22.8 | |||
| TTR30-2508-ASAE | 2,5 "x8" | 20-1/4 " | 28-1/4 " | 23.6 | |||
| TTR30-2510 | 2.5"X10" | 20-1/4 " | 30-1/4 " | 25.5 | |||
| TTR30-2512 | 2.5 "x12" | 22-1/4 " | 34-1/4 " | 27.8 | |||
| TTR30-2514 | 2.5 "x14" | 24-1/4 " | 38-1/4 " | 30.2 | |||
| TTR30-2516 | 2.5 "x16" | 26-1/4 " | 42-1/4 " | 32.5 | |||
| TTR30-2516-AASA | 2.5 "x16" | 31-1/4 " | 47-1/4 " | 33.4 | |||
| TTR30-2518 | 2.5 "x18" | 28-1/4 " | 46-1/4 " | 34.8 | |||
| TTR30-2520 | 2,5 "x20" | 30-1/4 " | 50-1/4 " | 371 | |||
| TTR30-2524 | 2.5 "x24" | 34-1/4 " | 58-1/4 " | 41.8 | |||
| TTR30-2530 | 2.5 "x30" | 40-1/4 " | 70-1/4 " | 43.6 | |||
| TTR30-2536 | 2.5 "x36" | 46-1/4 " | 82-1/4 " | 49.6 | |||
| TTR30-2540 | 2.5 "X40" | 50-1/4 " | 90-1/4 " | 53.7 | |||
| TTR30-2548 | 2.5 "X48" | 58-1/4 " | 106-1/4 " | 61.7 | |||
| Bind-rodcylinder | |||||||
| Delnummer | Rod DIAMETER |
Bore8 Slag |
Dimensioner | Portstørrelse | STIFT STØRRELSE |
VÆGT (Lbs) |
|
| Trukket tilbage | Udvidet | ||||||
| TTR30-3004 | 1-1/4 " | 3 "x4" | 14-1/4 " | 18-1/4 " | 1/2 "NPT & SAE#8 |
1 " | 22.1 |
| TTR30-3006 | 3 "x6" | 16-1/4 " | 22-1/4 " | 24.0 | |||
| TTR30-3008 | 3 "x8" | 18-1/4 " | 26-1/4 " | 26.1 | |||
| TTR30-3008-ASAE | 3 "x8" | 20-1/4 " | 28-1/4 " | 8.4 | |||
| TTR30-3010 | 3"X10" | 20-1/4 " | 30-1/4 " | 28.2 | |||
| TTR30-3012 | 3 "x12" | 22-1/4 " | 34-1/4 " | 30.3 | |||
| TTR30-3014 | 3 "x14" | 24-1/4 " | 38-1/4 " | 32.4 | |||
| TTR30-3016 | 1-1/2 " | 3 "x16" | 26-1/4 " | 42-1/4 " | 38.7 | ||
| TTR30-3016-AASA | 3 "x16" | 31-1/4 " | 47-1/4 " | 1-1/4 " | 39.4 | ||
| TTR30-3018 | 3 "x18" | 28-1/4 " | 46-1/4 " | 1 " | 41.2 | ||
| TTR30-3020 | 3 "x20 ' | 30-1/4 " | 50-1/4 " | 43.8 | |||
| TTR30-3024 | 3 "x24 | 34-1/4 " | 58-1/4 " | 470 | |||
| TTR30-3030 | 3 "x30" | 40-1/4 " | 70-1/4 " | 54.3 | |||
| TTR30-3036 | 3 "x36" | 46-1/4 " | 82-1/4 " | 61.4 | |||
| TTR30-3040 | 3 "x40" | 50-1/4 " | 90-1/4 " | 66.2 | |||
| TTR30-3048 | 3 "x48" | 58-1/4 " | 106-1/4 " | 75.9 | |||
| TTR30-3504 | 1-1/4 " | 3.5 "x4" | 14-1/4 ” | 18-1/4 " | 1/2 "NPT & SAE#8 |
1 " | 26.0 |
| TTR30-3506 | 3.5 "x6" | 16-1/4 " | 22-1/4 " | 27.8 | |||
| TTR30-3508 | 3.5 "x8" | 18-1/4 " | 26-1/4 " | 30.7 | |||
| TTR30-3508-ASAE | 3.5 "x8" | 20-1/4 " | 28-1/4 " | 9.9 | |||
| TTR30-3510 | 3.5"X10" | 20-1/4 " | 30-1/4 " | 33.6 | |||
| TTR30-3512 | 3.5 "x12" | 22-1/4 " | 34-1/4 " | 36.6 | |||
| TTR30-3514 | 3.5 "x14" | 24-1/4 " | 38-1/4 " | 39.5 | |||
| TTR30-3516 | 1-1/2 " | 3.5 "x16" | 26-1/4 " | 42-1/4 " | 46.6 | ||
| TTR30-3516-AASA | 3.5 "x16" | 31-1/4 " | 47-1/4 " | 1-1/4 " | 476 | ||
| TTR30-3518 | 3.5 "x18" | 28-1/4 " | 46-1/4 " |
1 " |
50.0 | ||
| TTR30-3520 | 3.5 "x20" | 30-1/4 " | 50-1/4 " | 53.3 | |||
| TTR30-3524 | 3.5 "x24" | 34-1/4 " | 58-1/4 " | 69.2 | |||
| TTR30-3530 | 3.5 "x30" | 40-1/4 " | 70-1/4 " | 679 | |||
| TTR30-3536 | 3.5 "x36" | 46-1/4 " | 82-1/4 " | 77.5 | |||
| TTR30-3540 | 3.5 "X40" | 50-1/4 " | 90-1/4 " | 84.0 | |||
| TTR30-3548 | 3.5 "X48" | 58-1/4 " | 106-1/4 " | 96.8 | |||
| Bind-rodcylinder | |||||||
| Delnummer | Rod DIAMETER |
BORE& Slag |
Dimensioner | Portstørrelse | STIFT STØRRELSE |
VÆGT (Lbs) |
|
| Trukket tilbage | Udvidet | ||||||
| TTR30-4004 | 1-1/2 " | 4 "x4" | 14-1/4 " | 18-1/4 " | 1/2 "NPT & SAE#8 |
1 " | 52.0 |
| TTR30-4006 | 4 "x6" | 16-1/4 " | 22-1/4 " | 55.6 | |||
| TTR30-4008 | 4 "x8" | 18-1/4 " | 26-1/4 " | 58.9 | |||
| TTR30-4008-ASAE | 4 "x8" | 20-1/4 " | 28-1/4 " | 18.7 | |||
| TTR30-4010 | 4"X10" | 20-1/4 " | 30-1/4 " | 62.8 | |||
| TTR30-4012 | 4 "x12" | 22-1/4 " | 34-1/4 " | 66.4 | |||
| TTR30-4014 | 4 "x14" | 24-1/4 " | 38-1/4 " | 70.0 | |||
| TTR30-4016 | 1-3/4 " | 4 "x16" | 26-1/4 " | 42-1/4 " | 84.2 | ||
| TTR30-4016-AASA | 4 "x16" | 31-1/4 " | 47-1/4 " | 1-1/4 " | 85.2 | ||
| TTR30-4018 | 4 "x18" | 28-1/4 " | 46-1/4 " | 1 " | 84.7 | ||
| TTR30-4020 | 4 "x20" | 30-1/4 " | 50-1/4 " | 85.1 | |||
| TTR30-4024 | 4 "x24" | 34-1/4 " | 58-1/4 " | 93.1 | |||
| TTR30-4030 | 2 " | 4 "x30" | 40-1/4 " | 70-1/4 " | 111.6 | ||
| TTR30-4036 | 4 "x36" | 46-1/4 " | 82-1/4 " | 124.8 | |||
| TTR30-4040 | 4 "x40" | 50-1/4 " | 90-1/4 " | 133.6 | |||
| TTR30-4048 | 4 "x48" | 58-1/4 " | 106-1/4 ” | 151.1 | |||
| TTR30-5004 | 2 " | 5 "x4" | 16-1/4 " | 20-1/4 " | 1/2 "NPI & SAE#10 |
1-1/4 " | 59.7 |
| TTR30-5006 | 5 "x6" | 18-1/4 " | 24-1/4 " | 64.9 | |||
| TTR30-5008 | 5 "x8" | 20-1/4 " | 28-1/4 " | 70.2 | |||
| TTR30-5010 | 5"X10" | 22-1/4 " | 32-1/4 " | 75.4 | |||
| TTR30-5012 | 5 "x12" | 24-1/4 " | 36-1/4 " | 80.7 | |||
| TTR30-5014 | 5 "x14" | 26-1/4 " | 40-1/4 " | 85.9 | |||
| TTR30-5016 | 5 "x16" | 28-1/4 " | 44-1/4 " | 91.2 | |||
| TTR30-5016-AASA | 5 "x16" | 31-1/4 " | 47-1/4 " | 92.9 | |||
| TTR30-5018 | 5 "x18" | 30-1/4 " | 48-1/4 " | 96.4 | |||
| TTR30-5020 | 5 "x20" | 32-1/4 " | 52-1/4 " | 101.7 | |||
| TTR30-5024 | 5 "x24" | 36-1/4 " | 60-1/4 " | 112.1 | |||
| TTR30-5030 | 5 "x30" | 42-1/4 " | 72-1/4 " | 12Z9 | |||
| TTR30-5036 | 5 "x36" | 48-1/4 " | 84-1/4 " | 143.6 | |||
| TTR30-5040 | 5 "x40" | 50-1/4 " | 90-1/4 " | 154.1 | |||
| TTR30-5048 | 5 "x48" | 60-1/4 " | 108-1/4 " | 175.1 | |||
